centrifugal cast radiant tubes w type

　　

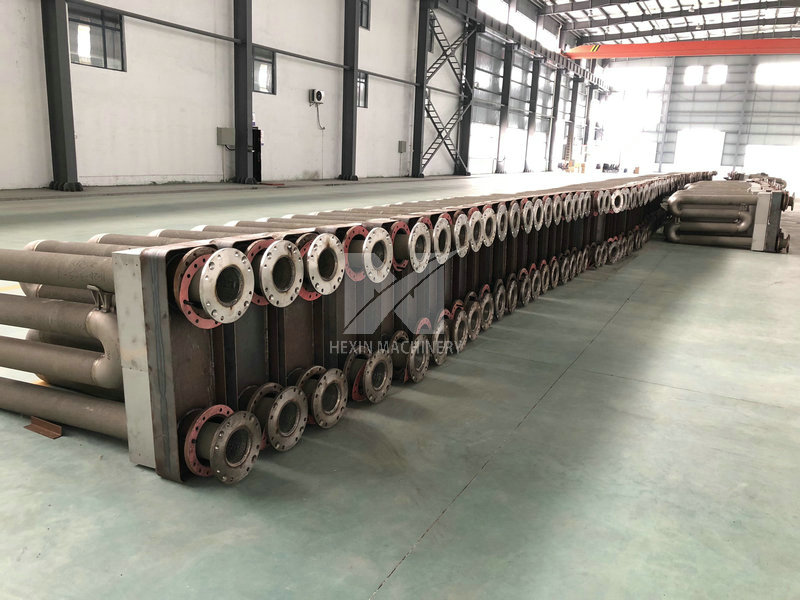

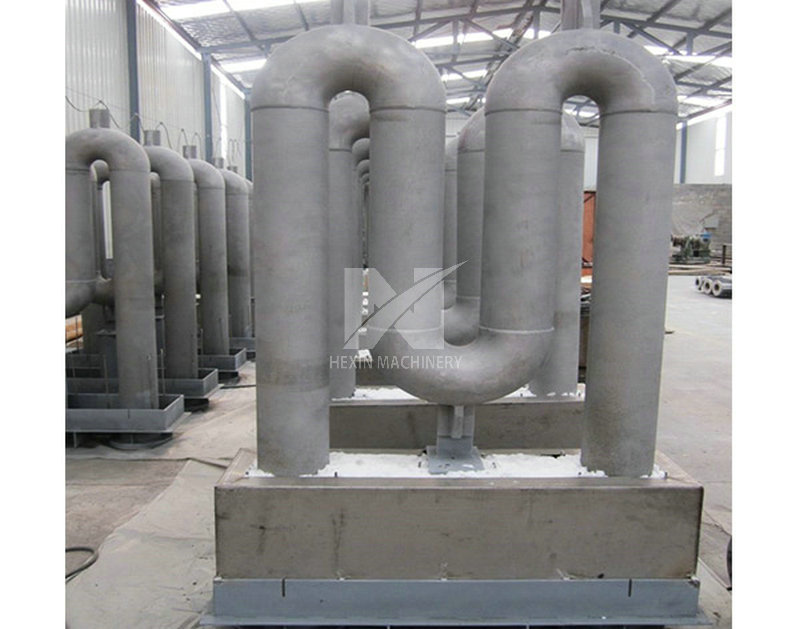

The W-shaped radiant tubes produced by our company have many specifications and excellent quality.
We use customized export-grade wooden boxes and wooden pallets to effectively protect the radiant tubes.
With our professional casting experience and production technology, we prolong the service life of the product and make the product lighter at the same time, thereby reducing the customer's use cost and improving the use efficiency, which is welcomed by users at home and abroad.
Our company is an innovative production and export-oriented enterprise integrating design, production and processing, specializing in the manufacture of heat-resistant steel castings. The main production processes include: precision casting, centrifugal casting, sand casting, etc. Commonly used materials for radiant tubes are ZG40Cr25Ni20Si2, ZG40Ni35Cr25Nb, ZG45Ni48Cr28W5Si2, 1.4848, 1.4852, 2.4879, etc.

Some regular data about W radiant tubes as below:
Range of Diameter: 60-2400mm
Max. Length: 7000mm
Min. wall thickness: 4mm
Casting Tolerance: ±1mm
Machining Toleracne: ±0.05mm
