Product Name: Precision Cast Tray + Guide Rail
Material: 1.4837
Dimensions: 860*860*70mm/580*215*75mm
Weight: 148.3kg/48.7kg
Production Process: Precision Casting

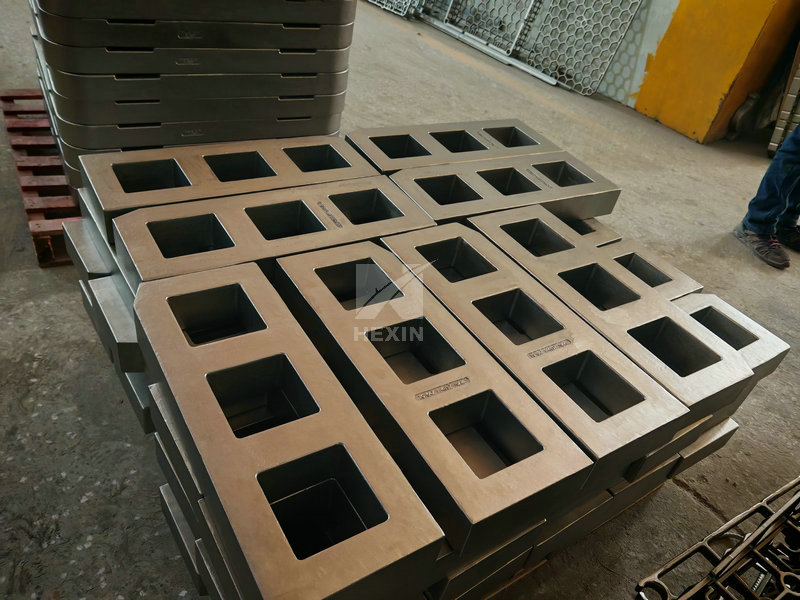

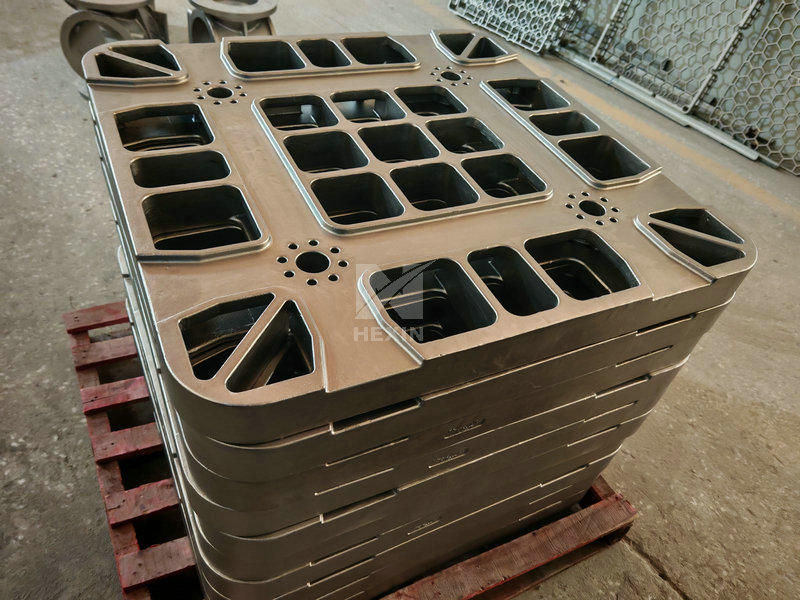

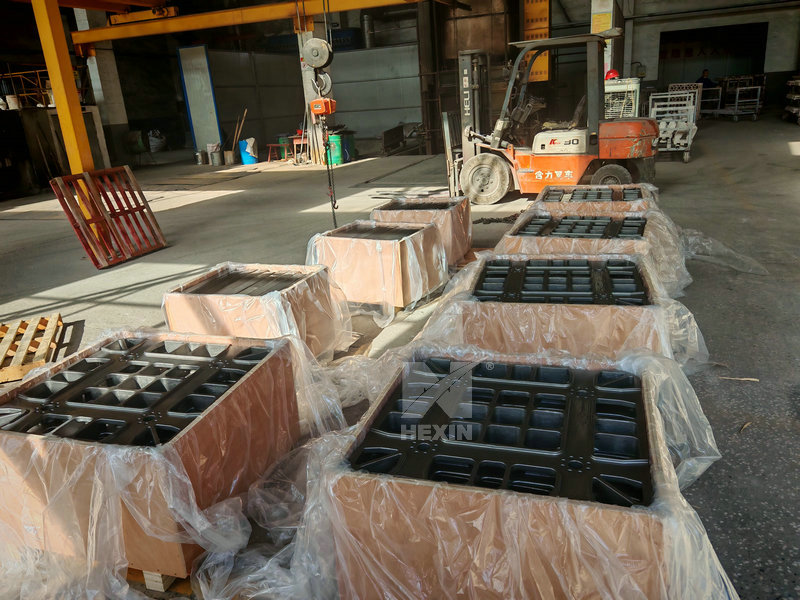

The picture shows the precision cast tray and guide rail produced last month. Dimensions: 860*860*70mm/580*215*75mm, made of 1.4837, produced using the silica sol precision casting process. After passing other quality inspection tests, they have been boxed and shipped. This batch of trays is primarily used at the bottom of industrial furnaces. Large workpieces can be placed directly on the tray for heat treatment, while smaller workpieces can be placed in a mesh basket and then placed on the tray for heat treatment. The tray guide rails have been equipped with process holes to reduce casting stress defects and also serve as oil drain holes during the heat treatment process.
