High Temperature Furnace Fans
Product name: Furnace Fans
Material: 1.4857
Size: Φ 320 * 1072mm
Single weight: 30kg
Production process: precision casting

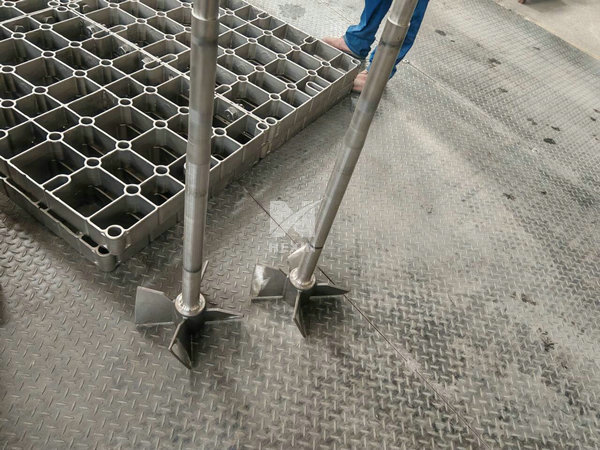

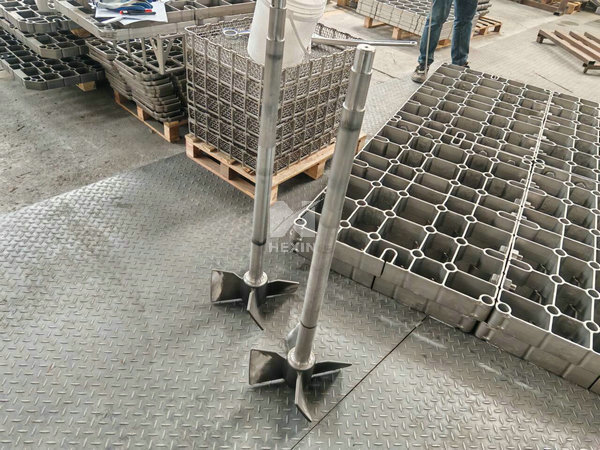

The picture shows the completed inspection of the Furnace Fans, with a material of 1.4857,
a size specification of 320 * 1072mm, and a weight of 30kg.
Produced using silica sol precision casting technology.
After subsequent machining, dynamic balance detection and other processes,
this fan is used in a heat treatment furnace: size DxRxC -1000x600x500mm,

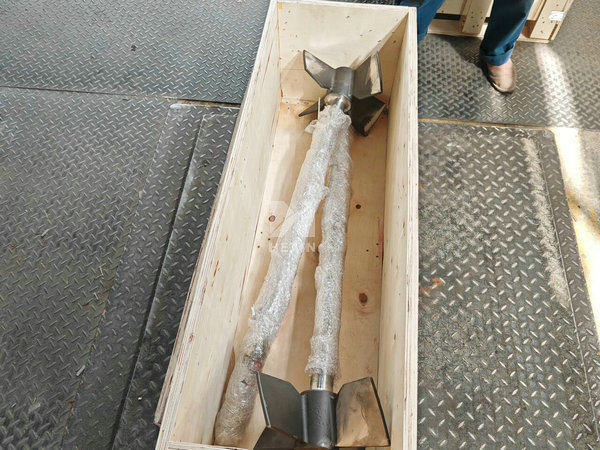

working temperature 950 ℃, flow rate: 18m3/min. After passing all inspections, it has been packed and shipped.
