Intermediate Grate and Cast post by precision casting
Product Category：Project CasesPrice：Negotiation
Intermediate Grate and Cast post by precision casting
Product Name: Intermediate Grate+Cast post
Material: 1.4849/1.4852
Size: Middle grate 914 * 590 * 35mm

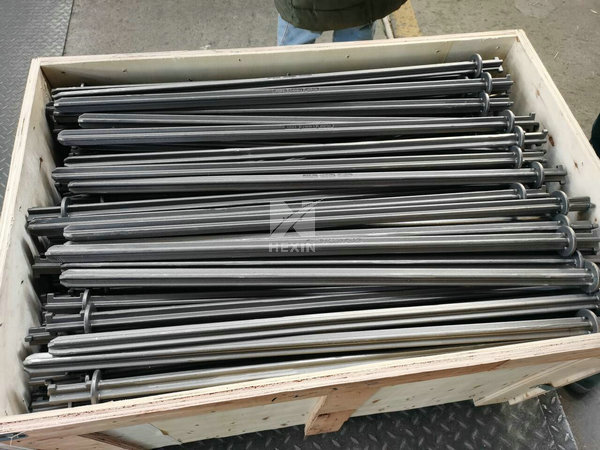

Column ∅ 28 * 880mm
Single weight: 29/2.4 kg
Production process: precision casting

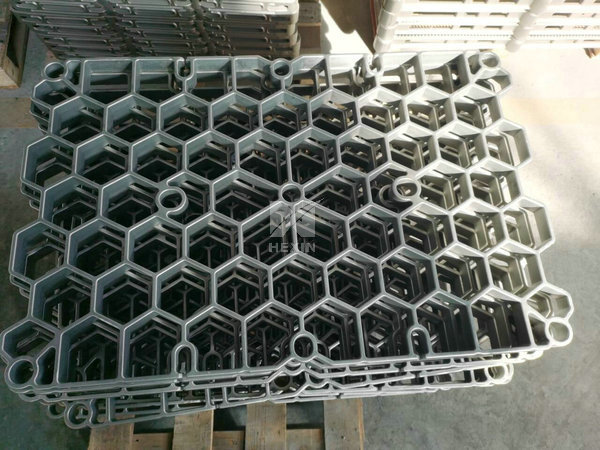

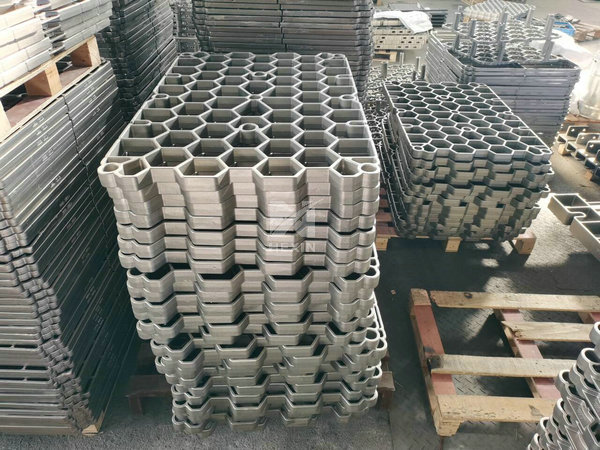

The picture shows a batch of heat treatment fixtures that have completed inspection,
including Intermediate Grate and columns, made of 1.4849/1.4852 material,
with dimensions of 914 * 590 * 35mm for middle grates, 28 * 880mm for columns, and a weight of 29kg/2.4kg.
Using silica sol precision casting technology, the tooling mainly includes bottom trays, columns, middle grates, spacer tubes and other components,
mainly used for holding workpieces in heat treatment furnaces. This batch provides customers with additional quantities and experimental parts.
The same product was ordered with 1.4849 material and 1.4852 material, respectively.
The customer has placed long-term orders for various specifications of pallet fixtures,

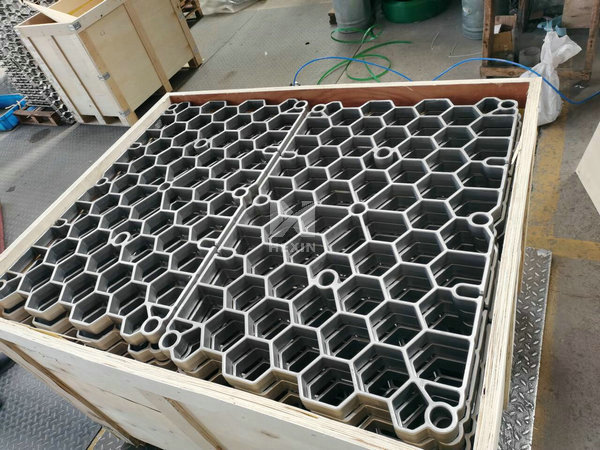

which have been inspected and qualified in all aspects, and have been packed and shipped.
