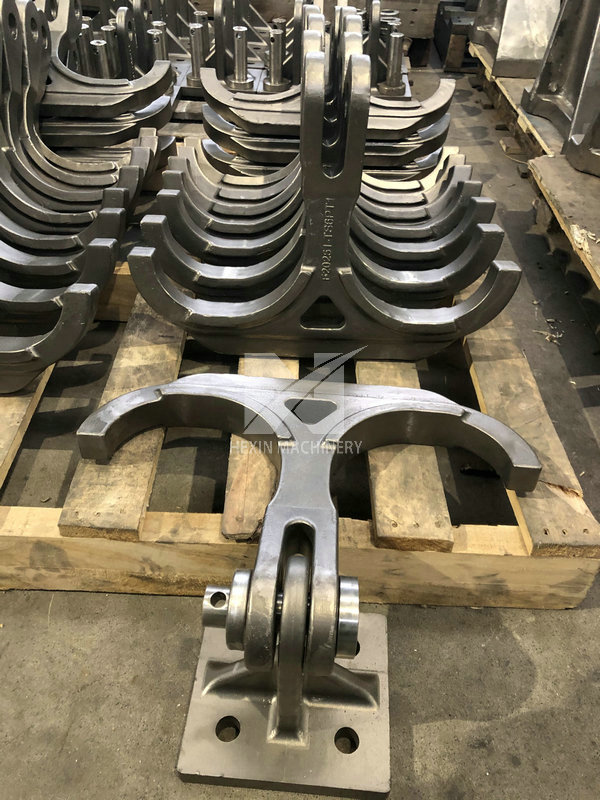

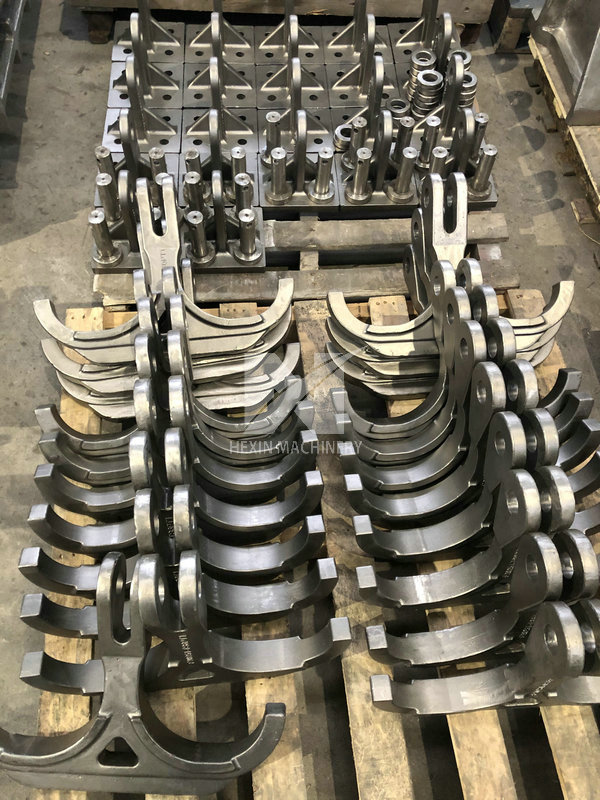

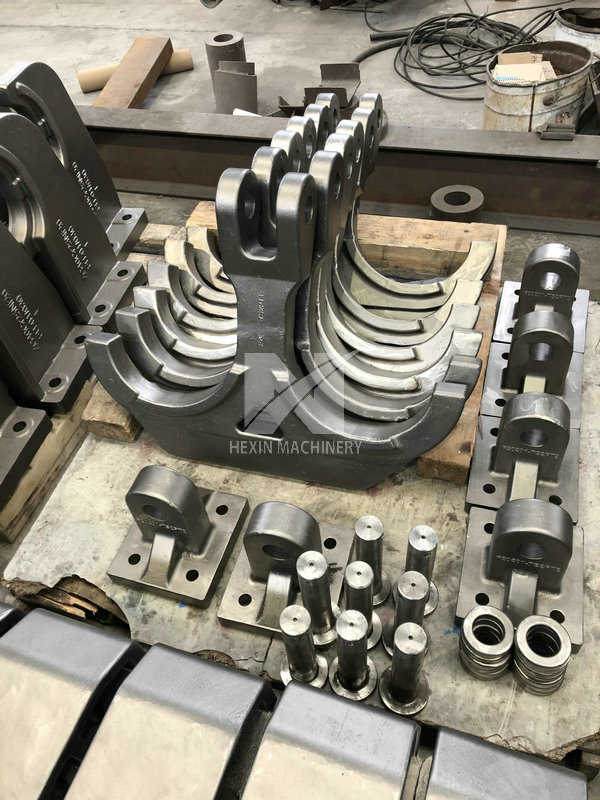

Cast wall tube hanger for fire heater

Most of the convection tubes of tube furnaces are placed horizontally: their weight is supported by the tube plates at both ends. When the furnace tube is longer, it is also necessary to set the intermediate tube plate.

 The tube plate and tube frame are furnace internal components set up to support the weight of the furnace tube (including the medium in the tube) and prevent excessive deformation of the furnace tube. Generally, the middle supporting member of the horizontal radiation furnace tube is called the tube frame, and the two ends are called the tube plate, and the supporting members in the middle and both ends of the horizontal convection furnace tube are called the tube plate.

HEXIN specializes in casting and producing internal fittings of petrochemical tubular heating furnaces. The conventional products include casting intermediate tube plates, both ends of tube plates, hangers, brackets, hooks, pipe racks, pull hooks, various furnace doors and heat-resistant alloys. Design, processing and production of steel castings. The material and specifications of the tube sheet are customized according to the user's technical requirements.

According to 30 years of tube-sheet casting experience, the maximum unit weight of the tube-sheet produced by our company can reach 6 tons. All heat-resistant steel products have passed 100% PT color flaw detection, and RT ray flaw detection on some key parts, making the quality of the tube sheets produced by our factory rank first in the country.
