Electric Heating Radiant Tube
Product Name: Electric Heating Radiant Tube
Material: 1.4848/Cr20Ni80
Dimensions: ∅ 70 * 1280mm/⌀ 128 * 1243mm/Φ 100 * 1286mm
Single weight: 17.2kg/44kg/28.5kg
Production process: centrifugal casting, static casting, finished welding

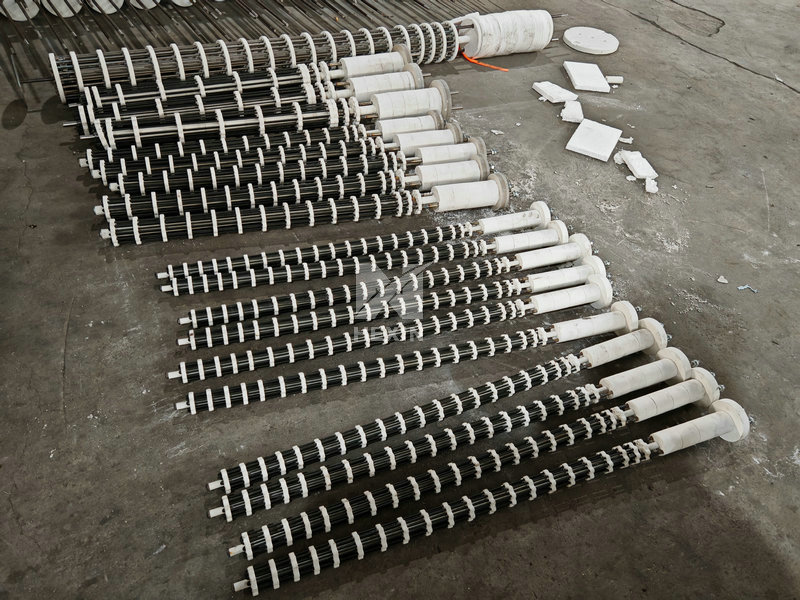

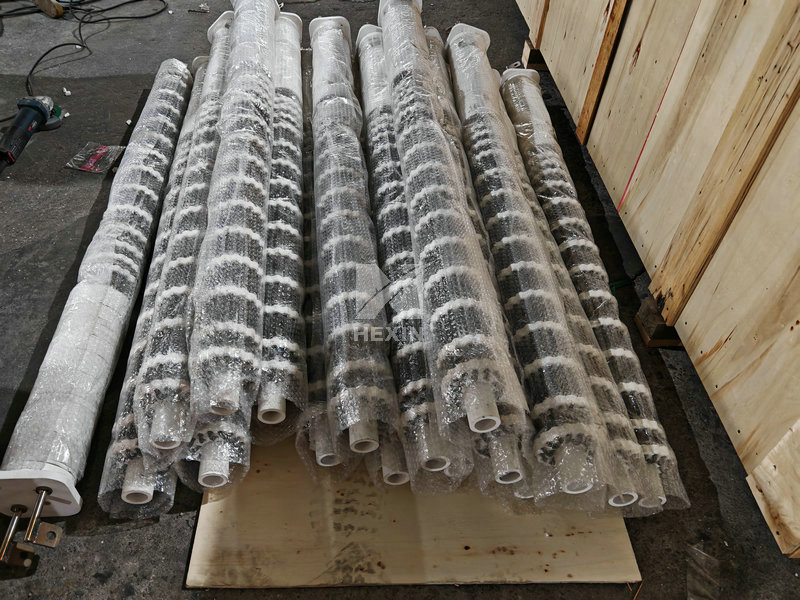

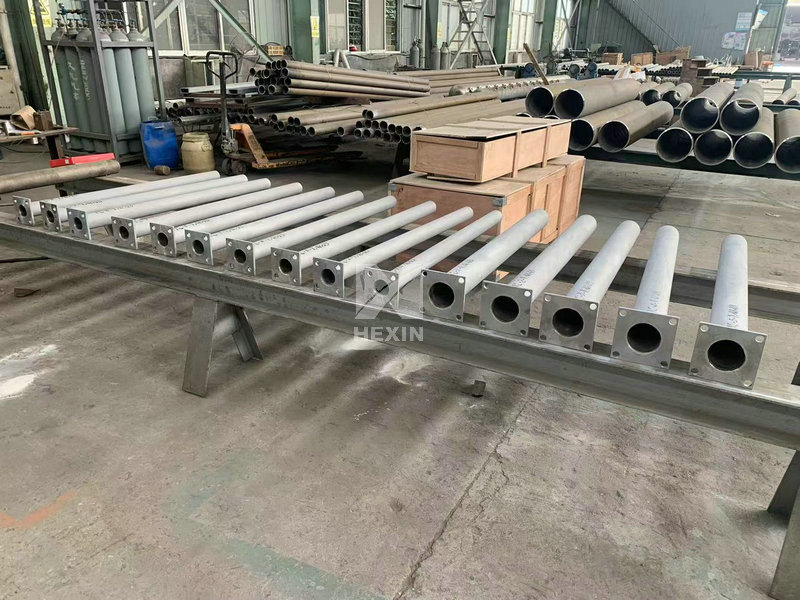

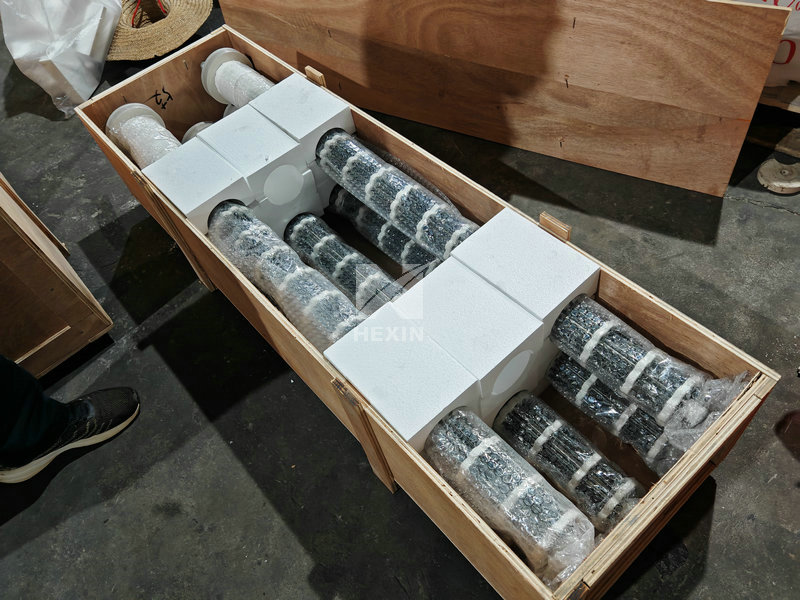

The picture shows a batch of electric heating Radiant tubes produced last month, including the Radiant tube shell and electric heating core. Divided into three size specifications: ∅ 70 * 1280mm/⌀ 128 * 1243mm/Φ 100 * 1286mm, material 1.4848, electric heater size mainly made of Cr20Ni80, weighing about 17.2kg/44kg/28.5kg. The Radiant tube is mainly produced by centrifugal casting and static casting processes, and the electric heater is mainly welded as a finished product. After passing the trial assembly and inspection in all aspects, the product will be packaged and shipped separately, and the customer will assemble it themselves.
