Carrier arms for sink rolls and stabilier rolls

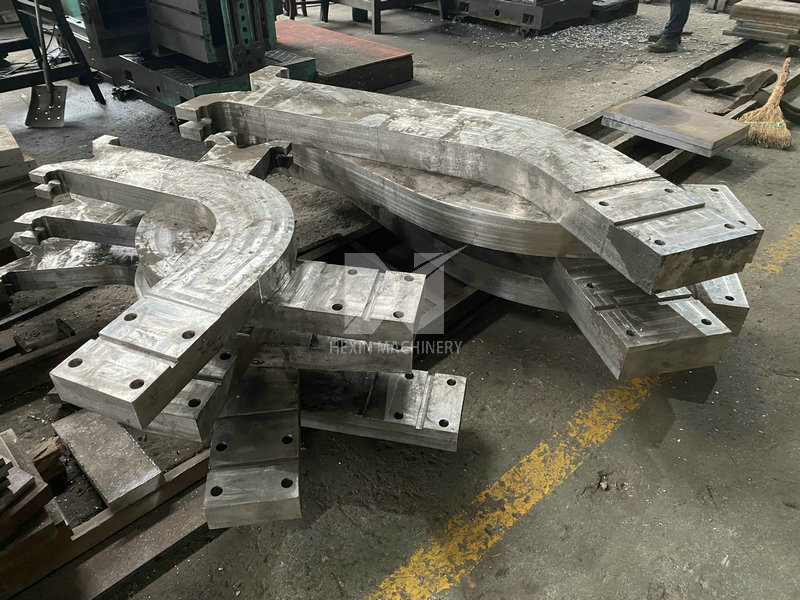

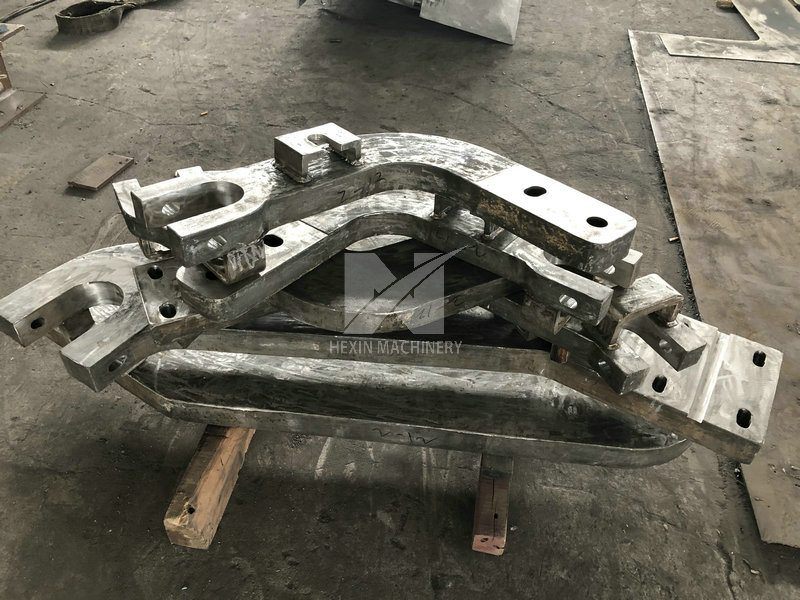

Roller arms for hot-dip galvanizing lines:

When the sinking roller and the stabilizing roller rotate at a certain speed, the supporting arm plays a role in supporting them. The lower part of the support arm is immersed in the molten aluminum-zinc liquid, so the material of the support arm not only requires corrosion resistance, but also needs to have a certain high-temperature strength.

HEXIN specializes in the production and supply of shaft sleeves, bushes, bearing bushes, bearing housings, roller arms, etc. for hot-dip galvanizing lines. The sinking roller arms are cast from high-hardness stainless steel 316L and 317, and the whole is solution heat treated. It is mainly used for Hot-dip galvanized, galvanized line.

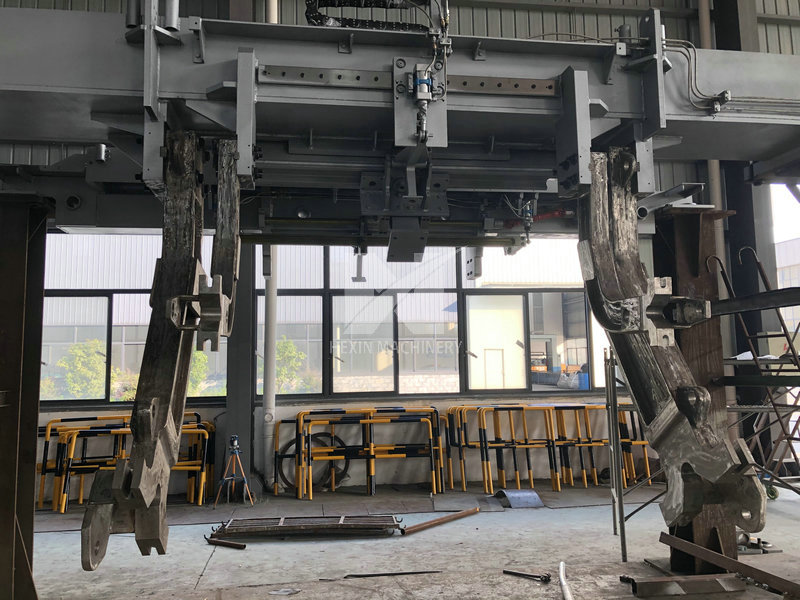

Zinc pan sinking roll device is composed of sinking roll, stabilizing roll, positioning roll, inner jacket and sinking roll support arm, etc. The quality of its work directly affects the product quality of hot-dip galvanized steel sheets and the comprehensive benefits of the galvanizing unit. The length of its service life is an important indicator to judge the quality of its work.
