Grate Bar by Precision Casting, Machining

Product Name: Grate bar

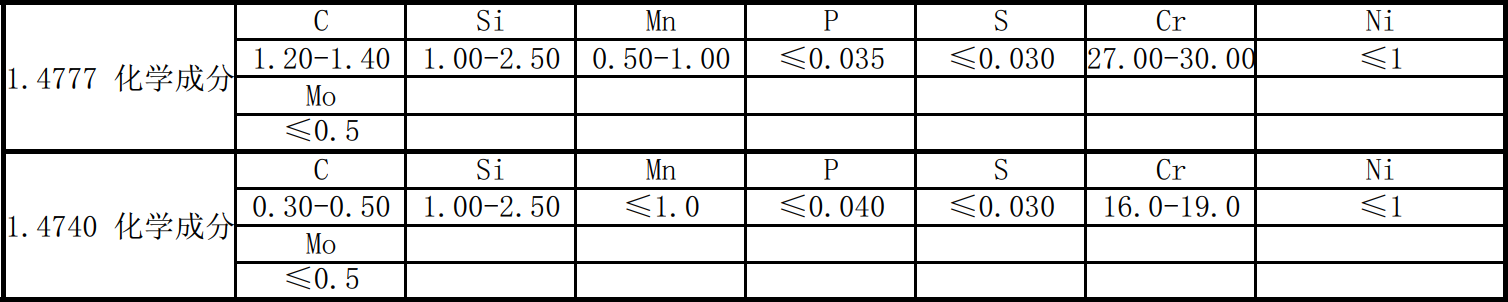

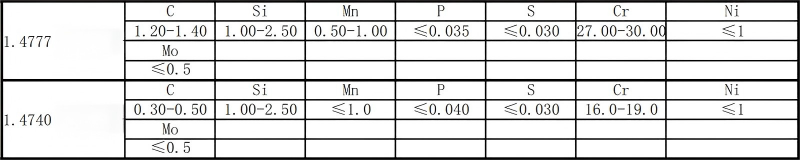

Material: 1.4777/1.4740

Size: 405 * 90 * 50/30mm

473*80*50/30mm

655*150*80mm、655*75*75mm、655*75*42mm

Single weight: 3.7-13.2kg

Production process: precision casting, machining

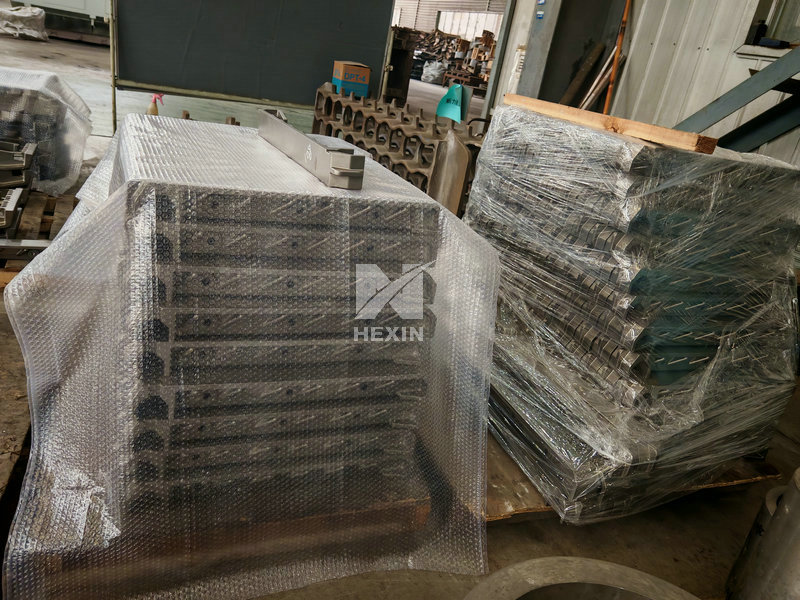

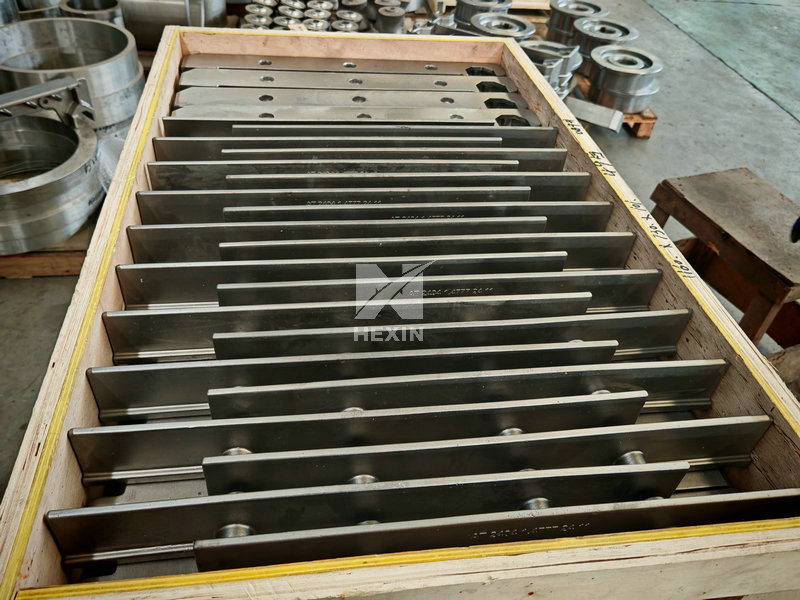

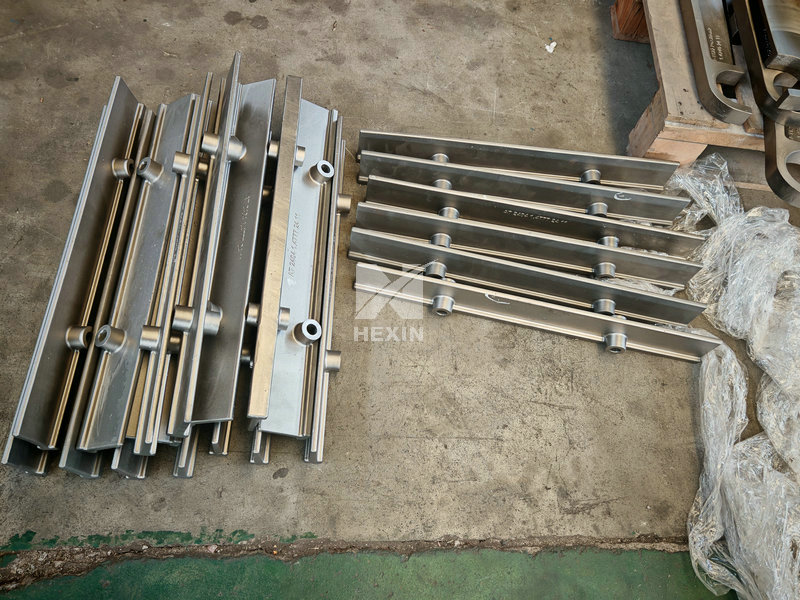

The picture shows the completed inspection of the grate bar order, with a material of 1.4777/1.4740 and dimensions of 405 * 90 * 50/30mm

473*80*50/30mm

655*150*80mm、655*75*75mm、655*75*42mm， The weight is 3.7-13.2kg.

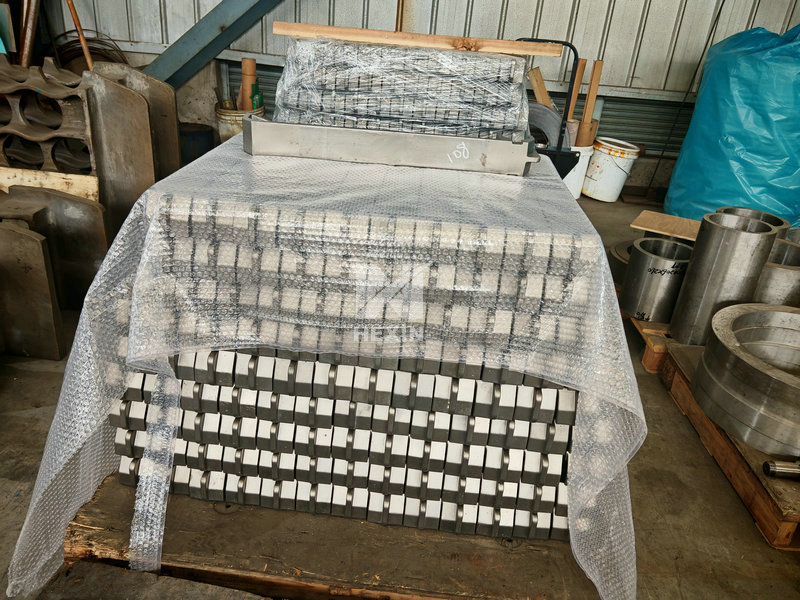

It is produced using silica sol precision casting technology and subsequently machined. The grate bars are often cast from materials with good wear resistance. After necessary machining, they can be better combined and used. At the same time, heat treatment can effectively improve the hardness of the grate bars, comprehensively increasing their service life. This batch of grate bars has passed various inspections and has been packed and shipped.
